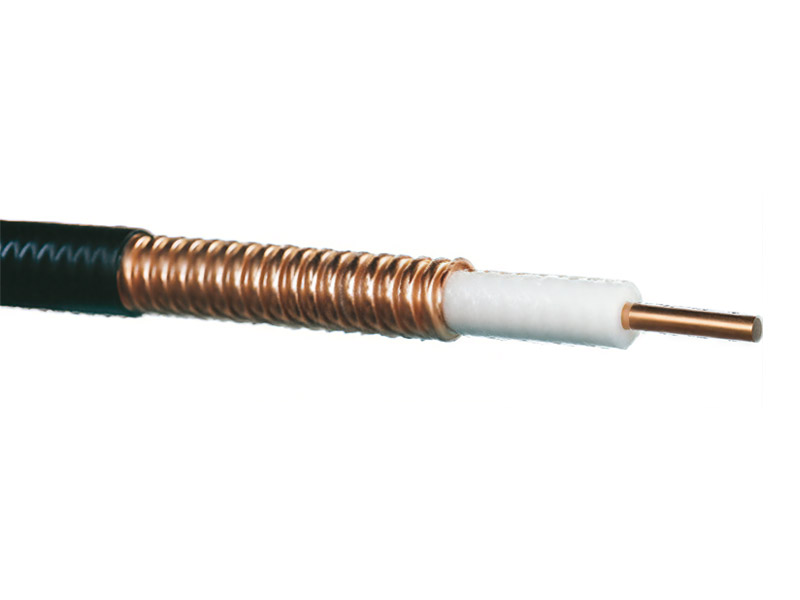

1/2”Ultra Flexible RF Coaxial Cable_汕头高新区奥星光通信设备有限公司

Product Model: HCAHY (Z) -50-9

Product Structure

Inner Conductor	Copper clad aluminum wire	Φ 3.55 mm
Insulating layer	Foamed polyethylene	Φ 9.00mm
Outer Conductor	Rolled copper tube	Φ 11.9mm
Sheath	Black polyethylene or flame-retardant polyolefin	Φ 13.5 mm

Electrical characteristics at+20 ℃
Characteristic impedance	50±1Ω
Return loss (provide other frequency bands as needed)	320 - 480 MHz	1.15
	700 - 960 MHz	1.15
	1700 - 1880 MHz	1.15
	1880 - 2180 MHz	1.15
	2300 - 3000 MHz	1.15
	3300 - 3700 MHz	1.15
	4800 - 5000 MHz	1.15
Attenuation	See table
Velocity coefficient	0.88
Capacitance	83 pF/m
Cutoff frequency	12 GHz
Maximum rated power	see table
RF rated voltage peak value	1.39 kV
Peak rated power	19.0 kW

Mechanical Characteristics
Reference weight	180 kg/km
Compressive strength	19N/mm
Maximum tensile force	800N
Minimum bend radius	Single bending	15 mm
	Multiple bends	50mm
Operating temperature range	-55℃~+80℃
Minimum installation temperature	See sheath options

Attenuation and rated power of cables

Frequency MHz	Attenuation Environmental temperature+20 ℃ dB/100m Typical	Rated power Environmental temperature+40 ℃ Inner conductor temperature+100 ℃ KW
10	1.00	8.4
50	2.24	3.7
100	3.19	2.6
200	4.61	1.8
300	5.65	1.4
400	6.63	1.2
450	7.08	1.2
500	7.51	1.1
700	8.92	0.91
800	9.60	0.85
900	10.20	0.79
950	10.50	0.77
1000	10.81	0.75
1400	12.93	0.62
1600	13.94	0.58
1800	14.95	0.54
1900	15.35	0.52
2000	15.76	0.51
2200	16.56	0.48
2400	17.37	0.46
2600	18.28	0.44
2800	18.99	0.42
3000	19.80	0.40
3500	21.61	0.36
4000	23.33	0.34
6000	29.69	0.27

Sheath Options

Model	Sheath	IEC60754-1/-2 Halogen free Corrosion protection	IEC61034 Low smoke	IEC60332-1/3C Flame retardant	Minimum installation temperature
HCAHY-50-9	Black Polyethylene	yes	No	No	-40℃
HCAHYZ-50-9	Black Low smoke halogen-free flame retardant	yes	yes	yes	-20℃
