Product Standard
The optical cable complies with YD/T 981.3 and IEC 60794-1 standards.
Product Features
Has excellent mechanical properties and temperature characteristics
The loose tube material itself has good hydrolysis resistance and high strength
The tube is filled with special grease to provide critical protection for the optical fiber
Specially designed tight fiber optic cable structure effectively prevents sleeve retraction
Good compression resistance and flexibility
PE sheath has excellent resistance to ultraviolet radiation
Using 4, 6, 8, and 12 core fiber optic tapes for flexible application
Take the following measures to ensure the waterproof performance of the optical cable:

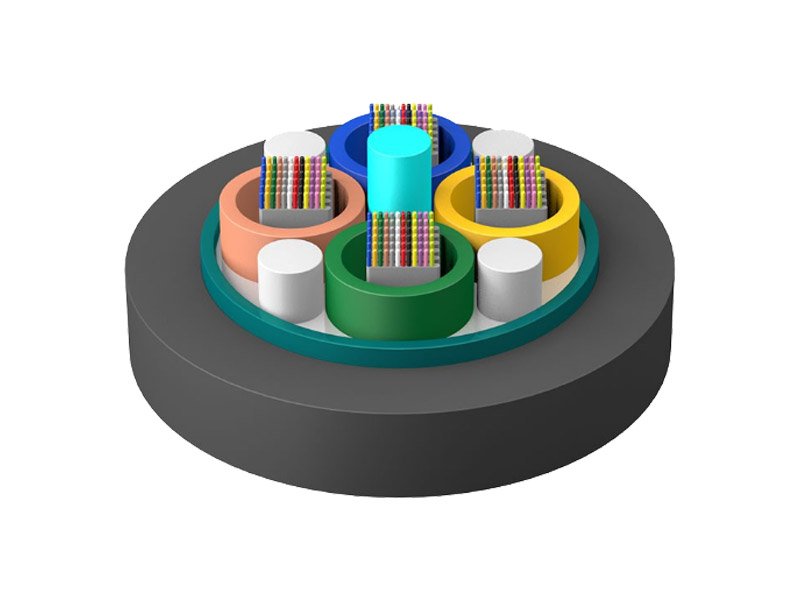

Single steel wire center reinforced core
Fill the loose tube with special waterproof compound
Complete cable core filling
Double sided coated steel strip (PSP) improves the moisture resistance of optical cables
Laying method: pipeline and overhead
Structural and mechanical parameters
| Number of optical cable cores | Number of cores in optical cable | Outer diameter of optical cable (mm) | Weight of optical cable (kg/km) | minimum bend radius | Minimum allowable tensile force for optical fiber | Minimum allowable flattening force for optical fibers | |||
| Static (mm) | Dynamic (mm) | Short term (N) | Long term (N) | Short term (N/100m) | Long term (N/100m) | ||||
| 16~96 | 4 | 14.4~15.4 | 227~244 | 144~154 | 288~308 | 1500~3000 | 600 | 1000 | 300 |
| 24~144 | 6 | 16.4~17.8 | 270~310 | 164~178 | 328~356 | 1500~3000 | 600 | 1000 | 300 |
| 150~216 | 6 | 18.6~20.2 | 353~406 | 186~202 | 372~404 | 3000 | 600 | 1000 | 300 |
| 222~288 | 6 | 20.6~22.3 | 423~488 | 206~223 | 412~446 | 3000 | 600 | 1000 | 300 |
| 48~288 | 8 | 20.6~22.3 | 423~488 | 206~223 | 412~446 | 3000 | 600 | 1000 | 300 |
| 296~384 | 8 | 22~23.8 | 474~543 | 220~238 | 440~476 | 3000 | 600 | 1000 | 300 |
| 48~432 | 12 | 20.8~24.8 | 429~580 | 208~248 | 416~496 | 3000 | 600 | 1000 | 300 |
| 444~864 | 12 | 24.5~29.6 | 569~779 | 245~296 | 490~598 | 3000 | 600 | 1000 | 300 |
| 876~1008 | 12 | 32.0 | 880 | 320 | 640 | 3000 | 600 | 1000 | 300 |
Optical properties
| Fiber type | Attenuation (+20 ℃) | bandwidth | Numerical Aperture | Cut off wavelength of optical cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Environment Parameters
Transportation/storage temperature: -40 ℃ to+70 ℃
Order information
Standard length: 2000m or 3000m; other lengths can also be customized according to customer needs
