Product Standard
The optical cable complies with YD/T 1114 and IEC 60794-1 standards.
Product Features
Has excellent mechanical properties, temperature characteristics, and flame retardancy
The loose tube material itself has good hydrolysis resistance and high strength
The tube is filled with special grease to provide critical protection for the optical fiber
Good compression resistance and flexibility
Take the following measures to ensure the waterproof performance of the optical cable:

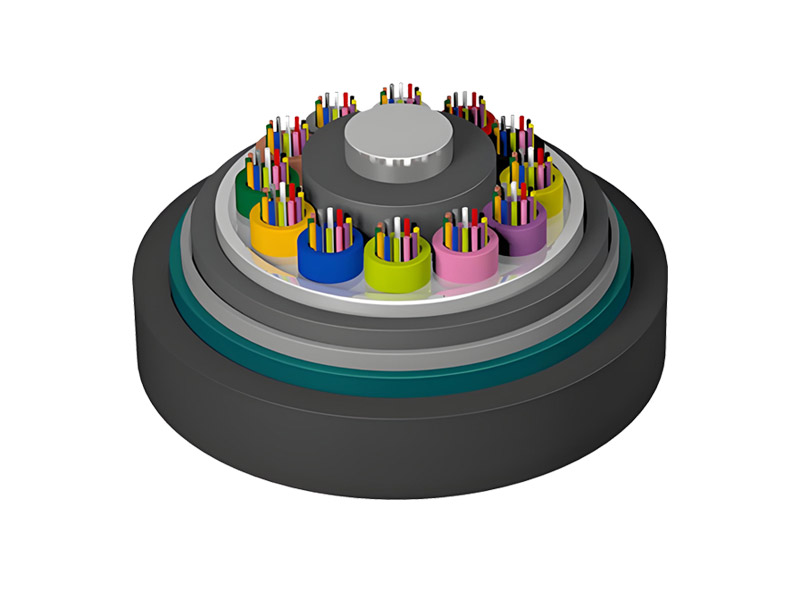

Single steel wire center reinforced core
Fill the loose tube with special waterproof compound
Complete cable core filling
Plastic coated aluminum strip (APL) moisture-proof layer
Double sided coated steel strip (PSP) improves the moisture resistance of optical cables
Good waterproof materials prevent longitudinal water seepage of optical cables
Laying methods: pipeline, overhead, direct burial
Structural and mechanical parameters
| Fiber optic cable model (increasing by 2 fibers) | Number of optical fibers | Number of sleeves | Number of filling ropes | Reference fiber optic cable weight (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | Bending radius Static/Dynamic (mm) |
| GYTZA53-2~6Xn | 2~6 | 1 | 5 | 217 | 1000/3000 | 1000/3000 | 12.5D/25D |
| GYTZA53-8~12Xn | 8~12 | 2 | 4 | 217 | |||
| GYTZA53-14~18Xn | 14~18 | 3 | 3 | 217 | |||
| GYTZA53-20~24Xn | 20~24 | 4 | 2 | 217 | |||
| GYTZA53-26~30Xn | 26~30 | 5 | 1 | 217 | |||
| GYTZA53-32~36Xn | 32~36 | 6 | 0 | 217 | |||
| GYTZA53-38~48Xn | 38~48 | 4 | 1 | 235 | |||
| GYTZA53-50~60Xn | 50~60 | 5 | 0 | 235 | |||
| GYTZA53-62~72Xn | 62~72 | 6 | 0 | 250 | |||
| GYTZA53-74~84Xn | 74~84 | 7 | 1 | 286 | |||
| GYTZA53-86~96Xn | 86~96 | 8 | 0 | 286 | |||
| GYTZA53-98~108Xn | 98~108 | 9 | 1 | 330 | |||
| GYTZA53-110~120Xn | 110~120 | 10 | 0 | 330 | |||
| GYTZA53-122~132Xn | 122~132 | 11 | 1 | 366 | |||
| GYTZA53-134~144Xn | 134~144 | 12 | 0 | 366 | |||
| GYTZA53-146~216Xn | 146~216 | 13~18 | 5~0 | 366 |
Optical properties
| Fiber type | Attenuation (+20 ℃) | bandwidth | Numerical Aperture | Cut off wavelength of optical cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Environment Parameters
Transportation/storage temperature: -40 ℃ to+70 ℃
Order information
Standard length: 2000m or 3000m; other lengths can also be customized according to customer needs
