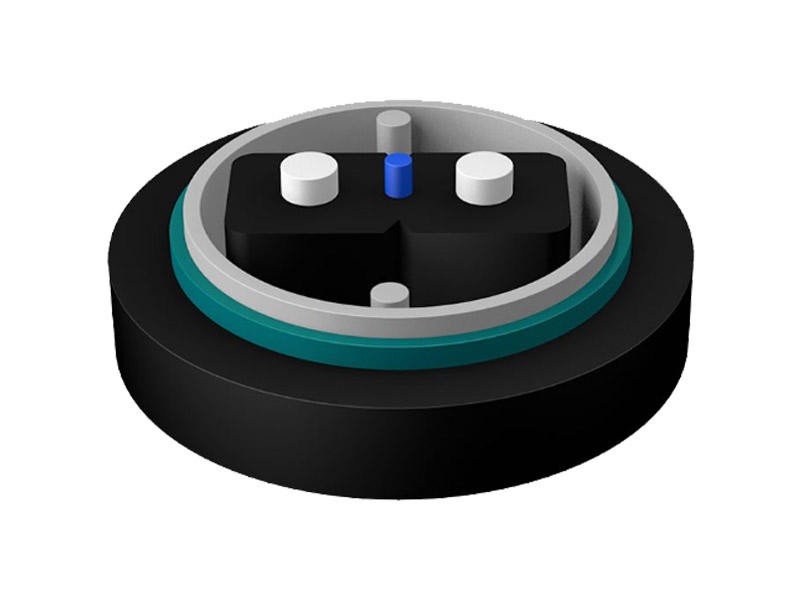

The butterfly shaped introduction of indoor optical cables for access networks involves placing the optical communication unit in the center, with two parallel metal or non-metal reinforcement elements placed on both sides, and extruding a black low smoke halogen-free sheath. Outer steel strip moisture-proof layer, and finally extruded PE sheath to form the cable.
Product Features
Special bending resistant fiber optic provides greater bandwidth and enhances network transmission characteristics
Two parallel reinforcing elements give the optical cable good compressive performance and protect the fiber
Fiber optic cable has a simple structure, light weight, and strong practicality
Unique groove design, easy to peel off, convenient to connect, simplifies installation and maintenance
Low smoke halogen-free flame retardant sheath, environmentally friendly
PE outer protection has excellent UV resistance performance
Double sided coated steel strip (PSP) improves the moisture resistance of optical cables
Structural Parameters
| Fiber optic cable model | core count | Fiber optic cable size (mm) | Reference weight of optical cable (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | Bending radius Dynamic/Static (mm) |
| GJYXFHS -1Xn | 1 | 7.4 | 59 | 200/600 | 2000 | 20D/10D |
| GJYXFHS -2Xn | 2 | 7.4 | 59 | 200/600 | 2000 | 20D/10D |
Storage and usage temperature: -20 ℃~+60 ℃. We can customize different size specifications according to customer requirements.
Optical properties
| Fiber type | attenuation | ofl | Effective mode bandwidth | 10G Ethernet link path length | minimum bend radius | |||
| condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| typical value | maximum | typical value | maximum | |||||
| unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Environment Parameters
Transportation/storage temperature: -20 ℃ to+60 ℃
Order information
Standard length: 2000m or 3000m; other lengths can also be customized according to customer needs
