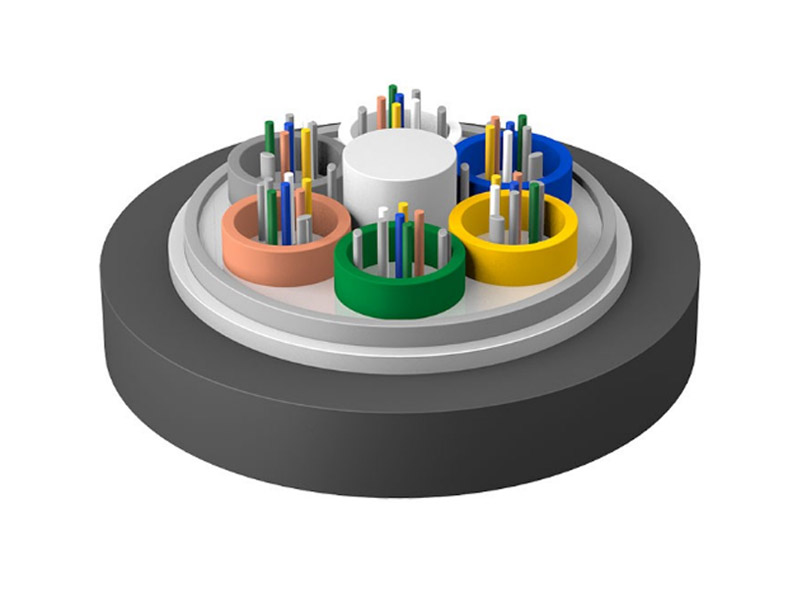

The structure of DCFA optical cable is to insert 250 µ m optical fibers into a loose tube made of high modulus material, and place special waterproof yarn inside the loose tube to provide critical protection for the optical fibers. The center of the cable core is a non-metallic reinforcement core (FRP), and a loose tube (and filling rope) is twisted around the center reinforcement core to form a compact and circular cable core. Both the loose tube and the reinforced core are equipped with waterproof yarns, and the cable core is longitudinally wrapped with waterproof tape. After being coated with plastic aluminum tape (APL) longitudinally wrapped, a polyethylene sheath is extruded to form the cable.
Product Features
Has excellent mechanical properties and temperature characteristics
The loose tube material itself has good hydrolysis resistance and high strength
Special waterproof yarn is placed inside the loose tube to provide critical protection for the optical fiber
Specially designed tight fiber optic cable structure effectively prevents sleeve retraction
PE sheath has excellent resistance to ultraviolet radiation
Using waterproof yarn and waterproof tape to ensure the waterproof performance of the optical cable
Applicable: pipelines, overhead
Structural and mechanical parameters
| Fiber optic cable model | Number of optical cable cores | ReferenceCable diameter (mm) | Reference weight of optical cable (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | Bending radius Dynamic/Static (mm) |
| DCFA | 2~30 | 8.5 | 70 | 400/1000 | 300/1000 | 10D/20D |
| 32~36 | 9.6 | 84 | ||||
| 38~60 | 9.7 | 86 | ||||
| 62~72 | 10.4 | 104 | ||||
| 74~96 | 11.8 | 133 | ||||
| 122~144 | 14.5 | 184 |
Optical properties
| Fiber optic type | Attenuation (+20 ℃) | bandwidth | numerical aperture | Cut off wavelength of optical cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Environment Parameters
Transportation/storage temperature: -40 ℃ to+70 ℃
Order information
Standard length: 2000m or 3000m; other lengths can also be customized according to customer needs
