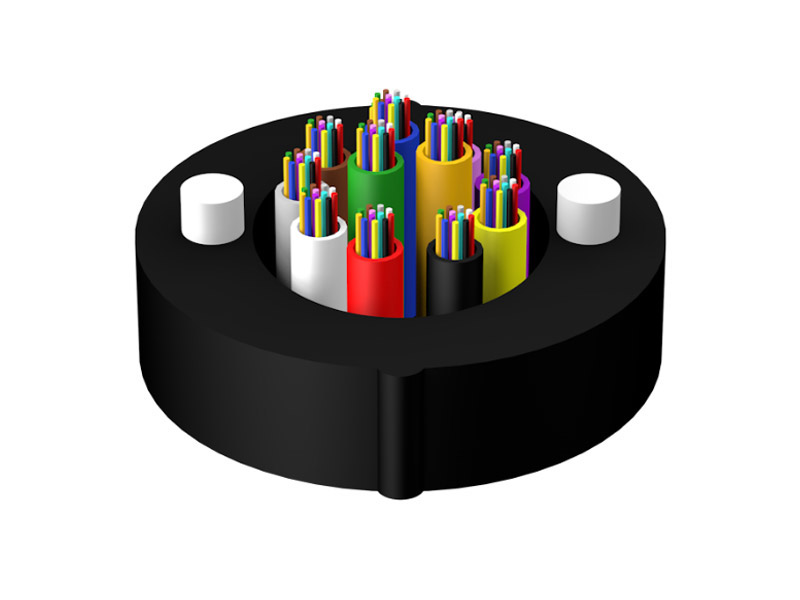

Indoor easy to connect RFC optical cables can utilize multi-core micro bundle tubes (RFC-II) as the optical transmission medium, with an outer layer extruded with a low smoke halogen-free material (LSZH) sheath and embedded with two parallel FRP as load-bearing and tensile elements. The maximum number of cores can reach 288.
Product Features
Low smoke halogen-free sheath ensures good flame retardant performance
Especially suitable for pre connection
Large fiber capacity, oil-free structure, easy to branch and splice installation
Structural and mechanical parameters
| Fiber optic cable model | Number of optical fibers | Reference weight of optical cable (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | Bending radius Dynamic/Static (mm) |
| RFC-II-X-XX-4~144Xn | 12 | 49 | 200/500 | 300/1000 | 10D/20D |
| 24 | 56 | ||||
| 48 | 80 | ||||
| 96 | 100 | ||||
| 144 | 120 |
Note: Different size specifications can be customized according to customer requirements.
Optical properties
| Fiber type | attenuation | ofl | Effective mode bandwidth | 10 Gigabit Ethernet Link Length | minimum bend radius | |||
| condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| typical value | maximum | typical value | maximum | |||||
| unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
Fiber optic selection: It is recommended to use B6A1 or B6A2 fiber optic.
We can provide optical cables that meet different temperature requirements according to customer needs.
Order information
Recommended length: 1000m; other lengths can be provided according to customer requirements.
