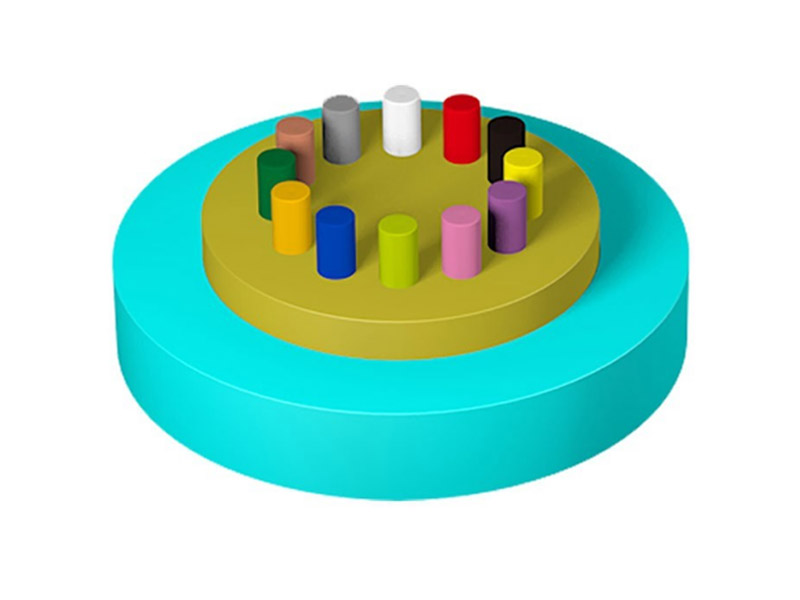

MFC indoor multi-core micro fiber optic cable uses multiple colored optical fibers as the optical transmission medium, covered with a layer of aramid as the stress reinforcement unit, and extruded with a layer of polyvinyl chloride (PVC) or low smoke halogen-free material (LSZH, low smoke, halogen-free, flame-retardant) sheath as the outermost layer.
Product Application
Indoor comprehensive cabling
data center
Product Standard
Can meet any of the YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If multiple items need to be met simultaneously,
Special design customization is possible. PVC products certified by UL OFNR and OFNP respectively; LSZH products utilize different materials to meet the requirements
IEC60332-1 or IEC60332-3C.
Product Features
Using colored optical fibers, high integration
Aramid reinforced components provide excellent tensile properties to optical cables
The outer protective material has advantages such as corrosion resistance, waterproofing, UV resistance, flame retardancy, and environmental friendliness
Structural Parameters
| Fiber optic cable model | Fiber optic cable diameter (mm) | Reference weight of optical cable (kg/km) | Allow tensile force Long term/Short term (N) | Bending radius Dynamic/Static (mm) | |
| PVC sheath | LSZH sheath | ||||
| MFC-X-XX-12Xn | 3.0±0.2 | 4.8 | 6.3 | 30/100 | 20D/10D |
| MFC-X-XX-24Xn | 3.0±0.2 | 6.5 | 8.0 | 50/150 | 20D/10D |
Note: Different size specifications can be customized according to customer requirements.
Optical properties
| Fiber type | attenuation | ofl | Effective mode bandwidth | 10G Ethernet link length | minimum bend radius | |||
| condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| typical value | maximum | typical value | maximum | |||||
| unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
Environment Parameters
Transportation/storage/usage temperature: -20 ℃~+60 ℃, installation temperature: -5 ℃~+50 ℃
Order information
Standard length: 2000m; other lengths can also be customized according to customer needs
