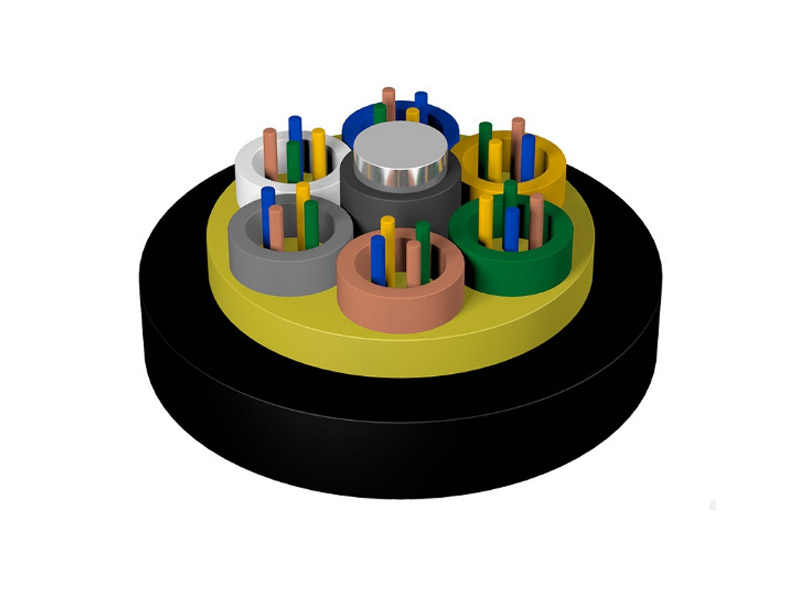

Indoor twisted micro cluster optical cables utilize microtubes (made of optical fibers and special materials) as photon subunits. The subunit is twisted around the non-metallic central reinforcement to form the cable core. Then extrude a PVC sheath onto the core. Other sheath materials can be provided upon request.
Product Features
Accurate process control ensures good mechanical performance and temperature stability
Good structural design for easy branching and splicing
Small size, light weight, easy to install
LSZH sheath ensures good flame retardant performance
Especially suitable for vertical wiring in buildings
Applicable: indoor vertical wiring
Structural and mechanical parameters
| Fiber optic cable model | Number of cores per tube | Reference outer diameter of optical cable (mm) | Reference weight of optical cable (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | Bending radius Static/Dynamic (mm) |
| GJPFH-12Xn(2MB) | 2 | 5.5 | 25 | 200/600 | 300/1000 | 10D/20D |
| GJPFH-24Xn(2MB) | 2 | 7.1 | 40 | |||
| GJPFH-24Xn(4MB) | 4 | 5.8 | 28 | |||
| GJPFH-24Xn(6MB) | 6 | 6.1 | 31 | |||
| GJPFH-48Xn(4MB) | 4 | 7.6 | 47 | |||
| GJPFH-48Xn(6MB) | 6 | 6.5 | 35 | |||
| GJPFH-48Xn(12MB) | 12 | 7.0 | 38 |
Note: Different size specifications can be customized according to customer requirements.
Optical properties
| Fiber type | attenuation | ofl | Effective mode bandwidth | 10G Ethernet link length | minimum bend radius | |||
| condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| typical value | maximum | typical value | maximum | |||||
| unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
Fiber selection: It is recommended to use B1.3, B6a1, or B6a2 fiber optic cables.
We can provide optical cables that meet different temperature requirements according to customer needs.
Environment Parameters
Transportation/storage temperature: -20 ℃ to+60 ℃
Order information
Recommended length: 2000m; other lengths can be provided according to customer requirements.
