All-dielectric self-supporting optical cable（ADSS）

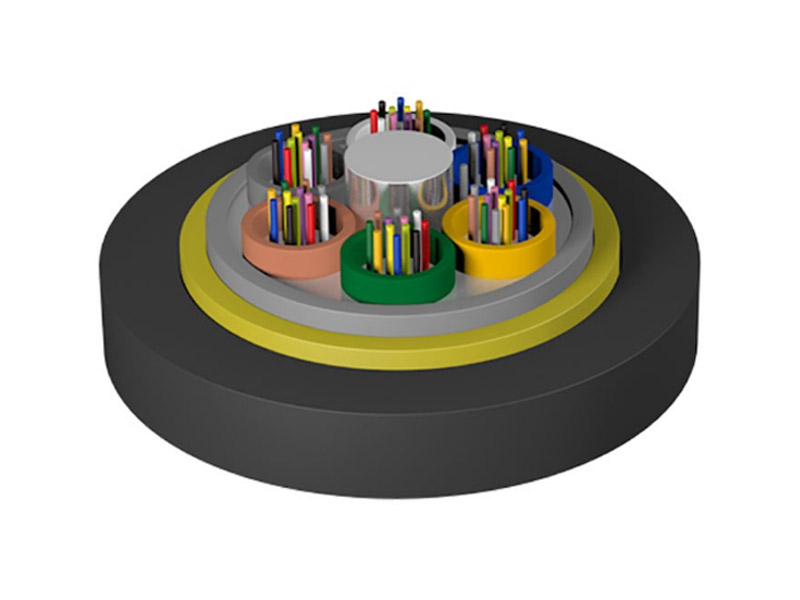

The ADSS optical cable adopts a loose layer twisted structure, in which 250 µ m optical fibers are inserted into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. A loose tube (and filling rope) is twisted around a non-metallic central reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water-resistant grease. The cable core is extruded with a polyethylene (PE) inner sheath, then twisted with aramid for reinforcement, and finally extruded with a polyethylene (PE) outer sheath or an anti trace (AT) outer sheath.

Product Features

Can be installed without power supply
Adopting AT sheath, with superior resistance to electric traces
Lightweight and with a small cable diameter, it reduces the impact of ice and wind, as well as the load on towers and supports
Large span, with a maximum span exceeding 1000 meters
Has excellent tensile properties and temperature characteristics

Applicable: self-supporting overhead structure

Structural and mechanical parameters

Reference outer diameter (mm)	Reference weight (kg/km)		Recommended daily maximum work tension (kN)	Maximum allowable working tension (kN)	Fracture strength (kN)	Tensile element cross-sectional area (mm2)	Elastic modulus (kN/mm2)	Thermal expansion coefficient × 10-6/K	Suitable span (m) Corresponding meteorological conditions (m)
Reference outer diameter (mm)	PE outer protection	AT external protection	Recommended daily maximum work tension (kN)	Maximum allowable working tension (kN)	Fracture strength (kN)	Tensile element cross-sectional area (mm2)	Elastic modulus (kN/mm2)	Thermal expansion coefficient × 10-6/K	A	B	C	D
11.8	117	124	1.5	4	10	4.6	7.6	1.8	160	100	140	100
12.0	121	129	2.25	6	15	7.6	8.3	1.5	230	150	200	150
12.3	126	134	3.0	8	20	10.35	9.45	1.3	300	200	290	200
12.6	133	141	3.6	10	24	13.8	10.8	1.2	370	250	350	250
12.8	138	145	4.5	12	30	14.3	11.8	1.0	420	280	400	280
13.1	145	153	5.4	15	36	18.4	13.6	0.9	480	320	460	320
13.5	155	163	6.75	18	45	22.0	16.4	0.6	570	380	550	380
13.8	163	171	7395	22	53	26.4	18.0	0.3	670	460	650	460
14.4	177	186	9.0	26	60	32.2	19.1	0.1	750	530	750	510
14.6	182	191	10.5	28	70	33.0	19.6	0.1	800	560	800	560
14.8	195	204	12.75	34	85	40.0	20.1	0.1	880	650	880	650

Optical properties

Fiber type	Attenuation (+20 ℃)				bandwidth		Numerical Aperture	Cut off wavelength of optical cable
Fiber type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical Aperture	Cut off wavelength of optical cable
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---
