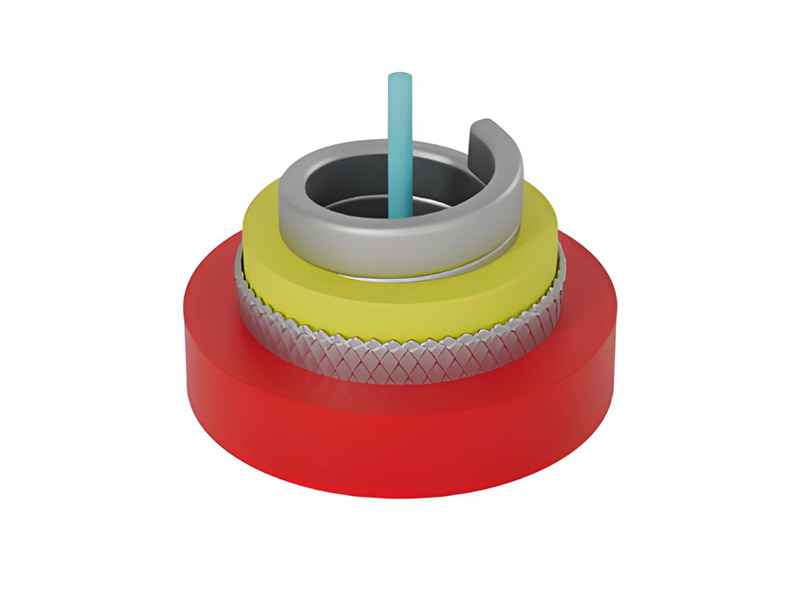

The temperature measurement optical cable places the sensing optical fiber inside a stainless steel threaded tube, which is reinforced with Kevlar tightly wrapped and stainless steel wire tightly woven outside the threaded tube; The outer layer is protected by a flame-retardant LSZH sheath. Sensing fiber is a multi-mode fiber that meets international standards and has excellent Raman scattering characteristics.
Product Application
Temperature measurement of urban underground pipe gallery
Temperature measurement of cables and busbars
Product Features
Fiber optic cable armor protection, with excellent mechanical properties
Small outer diameter, simple structure, fast thermal penetration, and fast temperature response.
Flame retardant LSZH outer sheath, excellent electrical insulation performance.
Fiber optic cables are soft and resilient, making them easy to install during construction.
Specification Parameters
| Project | Explanation | |
| Size and appearance | cable diameter | 3.0mm ± 0.1mm |
| material | optical fiber | 0.6mm tightly wrapped optical fiber |
| Stainless steel spiral tube | SUS200CU | |
| Reinforcement | aramid | |
| Stainless steel weaving | SUS304 | |
| outer sheath | Flame retardant LSZH | |
| optical fiber | Fiber type | GI50/62.5 multimode fiber |
| Number of fiber cores | one | |
| optical properties | attenuation | ≤3.0 dB/km(850nm) |
| ≤1.0 dB/km(1300nm) | ||
| mechanical properties | Allow tensile force | Long term 200N |
| Short term 400N | ||
| Allow squash Force | Long term 2000N | |
| Short term 3000N | ||
| minimum bend radius | Static 30mm | |
| Dynamic 60mm | ||
| Environmental | Applicable Temperature | -40℃~+85℃ |
| weight | Net weight of optical cable | 18kg/km |
| printing | content | Customer requirements |
Order information
Standard length: 2000m; other lengths can also be customized according to customer needs
