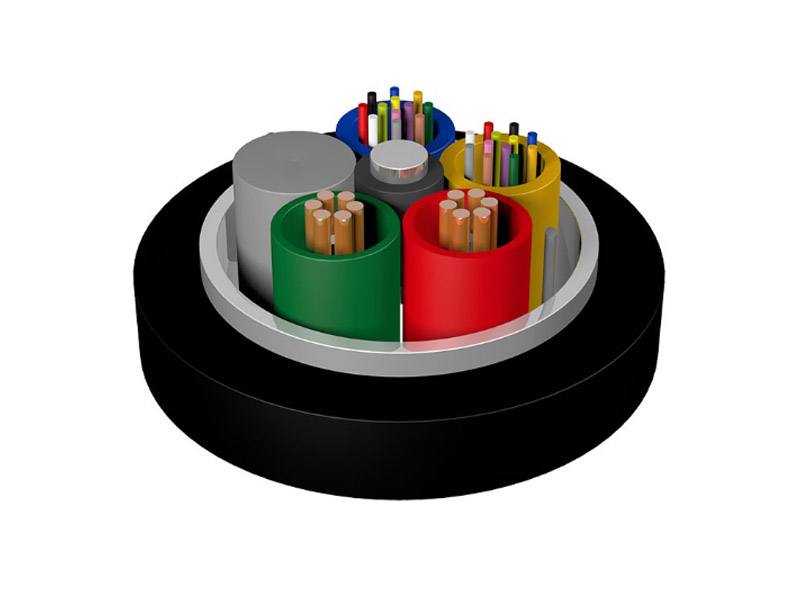

The structure of GDTS type optoelectronic hybrid cable is to pack single-mode or multi-mode optical fibers into a loose sleeve made of high modulus polyester material, and fill the sleeve with waterproof compound. The center of the cable core is a metal reinforced core, and for some fiber optic cables with a certain number of cores, a layer of polyethylene needs to be extruded outside the metal reinforced core. The loose tube and insulated copper wire of the required specifications are twisted around the central reinforcing core to form a compact circular cable core, and the gaps inside the cable core are filled with water-resistant fillers. Double sided coated aluminum strip (APL) or double-sided chrome plated coated steel strip (PSP) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
Product Features
Optoelectronic integration, solving equipment power and signal transmission problems, providing centralized monitoring and maintenance of equipment power supply
Improve the manageability of power supply, reduce power supply coordination and maintenance
Reduce procurement costs and save construction expenses
The precisely controlled fiber length ensures that the optical cable has good tensile performance and temperature characteristics
Mainly used in distributed base station DC remote supply systems to connect BBU and RRU
Suitable for pipeline or overhead laying
Structural and mechanical parameters
| Product Specifications | Reference outer diameter (mm) | Reference weight (Kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | reference structure |

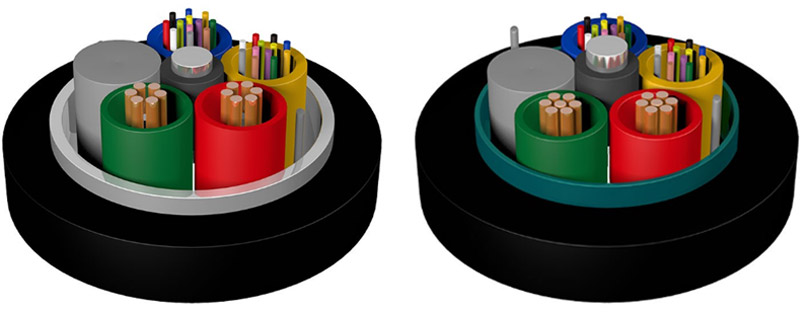

| GDTA-02~24Xn+2×1.5 | 11.2 | 132 | 600/1500 | 300/1000 | Type I structure |
| GDTA-02~24Xn+2×2.5 | 12.3 | 164 | Type II structure | ||
| GDTA-02~24Xn+2×4.0 | 13.4 | 212 | Type II structure | ||
| GDTA-02~24Xn+2×5.0 | 14.6 | 258 | Type III structure | ||
| GDTA-02~24Xn+2×6.0 | 15.4 | 287 | Type III structure | ||
| GDTA-02~24Xn+2×8.0 | 16.5 | 350 | Type III structure | ||
| GDTS-02~24Xn+2×1.5 | 11.6 | 157 | Type I structure | ||
| GDTS-02~24Xn+2×2.5 | 12.5 | 190 | IIType structure | ||
| GDTS-02~24Xn+2×4.0 | 13.6 | 241 | IIType structure | ||
| GDTS-02~24Xn+2×5.0 | 15.0 | 282 | Type III structure | ||
| GDTS-02~24Xn+2×6.0 | 15.7 | 300 | Type III structure | ||
| GDTS-02~24Xn+2×8.0 | 16.9 | 383 | Type III structure |
Note: Xn represents the fiber type 2 × 1.5/2 × 2.5/2 × 4.0/2 × 6.0/2 × 8.0, indicating the number and specifications of wires
We can produce optoelectronic hybrid cables with different wire specifications and quantities according to user requirements
We can produce optoelectronic composite cables with different numbers of fiber cores according to customer requirements
Environment Features
Transportation/storage/usage temperature: -40 ℃ to+70 ℃
Electrical performance of insulated conductors
| Conductor cross-sectional area (mm2) | Maximum DC resistance of a single conductor (20 ℃) (Ω/km) | Insulation resistance (20 ℃) (M Ω. km) | Insulation withstand voltage strength KV, DC for 1 minute | ||
| Between each insulated wire and other metals connected within the cable | Between wires | Wire and metal armor tape | Between wire and steel wire | ||
| 1.5 | 13.3 | Not less than 10000 | 5 | 5 | 3 |
| 2.5 | 7.98 | ||||
| 4.0 | 4.95 | ||||
| 5.0 | 3.88 | ||||
| 6.0 | 3.30 | ||||
| 8.0 | 2.47 | ||||
Note: The relevant performance of the feeder conductor meets GB/T3956-2008
The electrical performance of the feeder line meets the requirements of GB/T 5023.3-2007
Order information
Standard length: 2000m or 3000m; other lengths can also be customized according to customer needs
