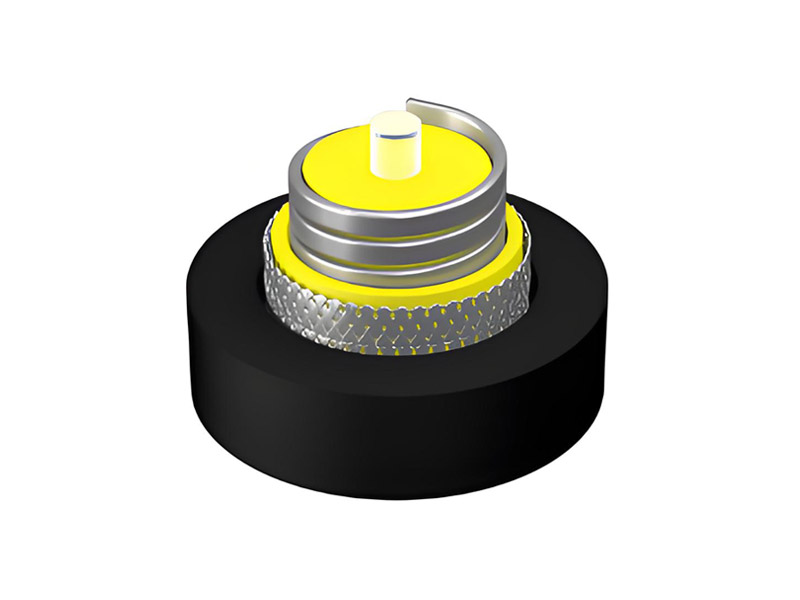

The high-temperature temperature measurement optical cable adopts high-temperature resistant special optical fibers and high-temperature resistant fluoroplastics, which expands the temperature measurement range. The long-term utilize temperature can be extended from -40 ℃ to+85 ℃ to -60 ℃ to+150 ℃, and is widely used in high-temperature places.
Product Application
Long term high temperature, low temperature, or large temperature difference between high and low temperatures
Places with strong chemical corrosion hazards
Product Features
The temperature range for utilize is very wide: -60 ℃~150 ℃
Wear resistant and corrosion-resistant, can be used for a long time in strong chemical environments
Fiber optic cable is soft and easy to construct
Specification Parameters
| Project | Technical Parameters |
| Product Model | GTFKE-1Xn |
| Outer diameter of optical cable (mm) | 3.0±0.1 |
| Weight Kg/km (reference value) | twenty |
| Attenuation (dB/km) | ≤3.0/1.0 @850/1300nm |
| Stretching (short-term/long-term N) | 400/200 |
| Flattening (short-term/long-term N/100mm) | 3000/2000 |
| Minimum bending radius (static/dynamic mm) | 10D/20D |
| Applicable temperature (℃) | -60～+150 |
*① Xn is a fiber optic type, and this product uses high-temperature resistant multimode fiber
*② D is the outer diameter of the product
Order information
Standard length: 2000m; other lengths can also be customized according to customer needs
