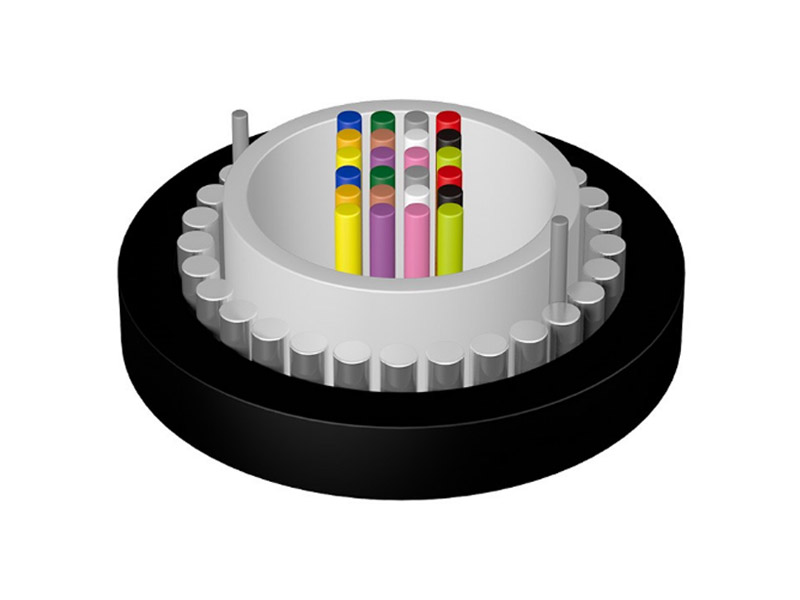

GYKFXTY is a lightweight bird resistant outdoor communication optical cable with non-metallic strength elements, single tube, semi dry design, and PE outer protective layer. Single mode optical fibers are placed in a loose tube made of high modulus plastic and filled with grease. Then, reinforce the pipe with FRP rods and extrude the PE outer protective layer.
Product Features
Accurate process control ensures good mechanical performance and temperature stability;
Loose pipes have good hydrolysis resistance and relatively high strength;
Excellent stress resistance and flexibility;
Fiberglass reinforced plastic (FRP) armor provides excellent bird and mouse protection performance;
Small size, light weight, easy to install
Applicable: pipelines, overhead
Structural and mechanical parameters
| Fiber optic cable model | Number of optical cable cores | Reference cable diameter (mm) | Reference fiber optic cable weight (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/short-term (N/100mm) | Bending radius |
| GYKFXTY | 2~12 | 7.6 | 49 | 600/1500 | 1000/2000 | 12.5D/25D |
| 14~24 | 8.2 | 64 | ||||
| 26~36 | 8.8 | 75 | ||||
| 38~48 | 9.2 | 81 |
光学特性
| Fiber type | Attenuation (+20 ℃) | bandwidth | Numerical Aperture | Cut off wavelength of optical cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Environment Parameters
Transportation/storage temperature: -40 ℃ to+70 ℃
Order information
Standard length: 2000m or 3000m; other lengths can also be customized according to customer needs
