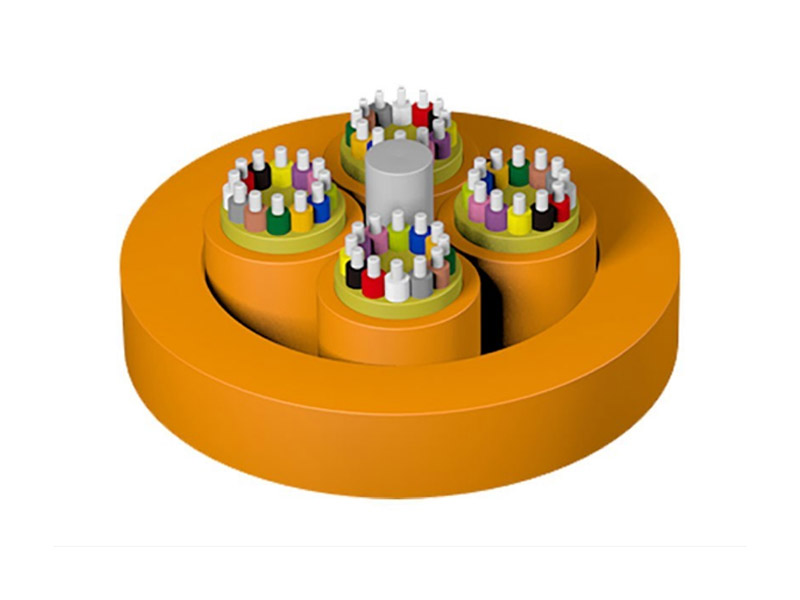

The MPC multi-purpose cabling optical cable uses multi-core units (Φ 900 µ m tight fitting optical fibers, aramid reinforcement elements), non-metallic central reinforcement cores, and cable sub unit layers twisted onto the central reinforcement core to form the cable core. The outermost layer is extruded with a polyvinyl chloride (PVC) or low smoke halogen-free material (LSZH, low smoke, halogen-free, flame-retardant) sheath, and the maximum number of cores in the optical cable can reach 288.
Product Application
Indoor comprehensive cabling
As the backbone cabling fiber optic cable of the building
Multi core fiber optic active connection jumper
Product Standard
Can meet any of the YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If multiple items need to be met simultaneously, they can be specially designed and customized. In addition to ordinary PVC products, there are also products that have passed UL OFNR and OFNP certifications respectively; LSZH products utilize different materials to meet IEC60332-1 or IEC60332-3C standards.
Product Features
Layered twisted fiber optic cable structure, non-metallic center reinforced core enables the cable to withstand greater tensile forces
Tight fitting optical fibers have good flame retardant properties
Aramid reinforced components provide excellent tensile properties to optical cables
The outer protective material has advantages such as corrosion resistance, waterproofing, UV resistance, flame retardancy, and environmental friendliness
Structural Parameters
| Fiber optic cable model | Reference size of optical cable (mm) | Reference weight of optical cable (kg/km) | Allow tensile force Long term/Short term (N) | Allow flattening force Long term/Short term (N/100mm) | Bending radius Dynamic/Static (mm) | |
| PVC sheath | LSZH sheath | |||||
| MPC-X-XX-24Xn | 12.3±0.5 | 117 | 124 | 200/600 | 300/1000 | 20D/10D |
| MPC-X-XX-36Xn | 14.5±0.5 | 171 | 180 | 200/600 | 300/1000 | 20D/10D |
| MPC-X-XX-48Xn | 14.8±0.5 | 161 | 170 | 400/1320 | 300/1000 | 20D/10D |
| MPC-X-XX-72Xn | 17.5±0.5 | 244 | 254 | 400/1320 | 300/1000 | 20D/10D |
| MPC-X-XX-96Xn | 20.7±0.5 | 351 | 366 | 400/1320 | 300/1000 | 20D/10D |
| MPC-X-XX-144Xn | 24.8±0.5 | 443 | 451 | 400/1320 | 300/1000 | 20D/10D |
Note: Different size specifications can be customized according to customer requirements.
Optical properties
| Fiber type | attenuation | ofl | Effective mode bandwidth | 10G Ethernet link length | minimum bend radius | |||
| condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| typical value | maximum | typical value | maximum | |||||
| unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
Environment Parameters
Transportation/storage/usage temperature: -20 ℃~+60 ℃, installation temperature: -5 ℃~+50 ℃
Order information
Standard length: 2000m; other lengths can also be customized according to customer needs
