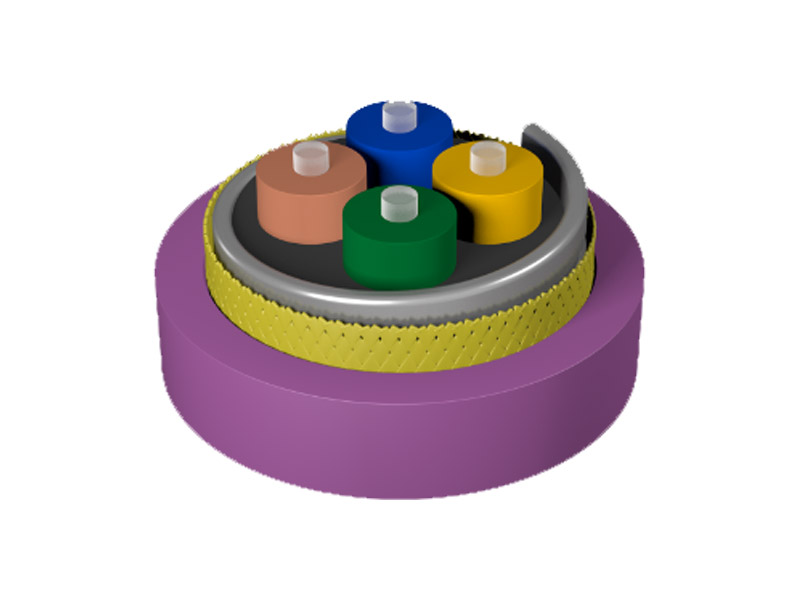

The multi-core armored high-temperature resistant optical cable adopts a spiral armored tube and aramid braided structure. The product has the characteristics of high temperature resistance, low temperature resistance, and pressure resistance, and the working temperature range is -55 to+125 ℃. The optical cable is made of high-temperature resistant materials, which can ensure long-term communication under high temperature conditions.
Product Application
High temperature resistant transmission line
Long distance utilize
Product Features
Wide range of temperature usage
High tensile and compressive strength
Specification Parameters
| Project | Technical Parameters | |
| Product Model | GTFKJE-4Xn | GTFKJE-8Xn |
| Outer diameter of optical cable (mm) | 3.2±0.2 | 4.0±0.2 |
| Reference weight (Kg/km) | eighteen | twenty-four |
| Attenuation (dB/km) | Single mode: ≤ 0.4/0.3 @ 1310/1550 nm | |
| Multimode: ≤ 3.5/1.5 @ 850/1300nm | ||
| Stretching (short-term/long-term N) | 300/150 | 500/250 |
| Flattening (short-term/long-term N/100mm) | 2000/1000 | |
| Minimum bending radius (static/dynamic mm) | 10D/20D | |
| Operating temperature ℃ | -55～+150 | |
*① Xn is a fiber optic type, and this product can choose single or multi-mode fiber optic
*② D is the outer diameter of the product
Order information
Standard length: 2000m; other lengths can also be customized according to customer needs
