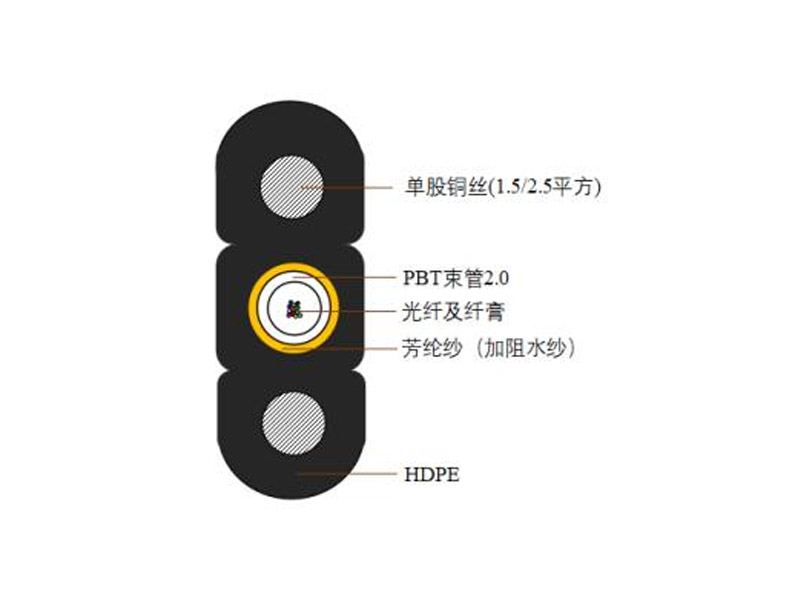

The flat center tube optoelectronic hybrid cable is made by inserting single-mode or multi-mode optical fibers into a loose tube made of high modulus PBT (polybutylene terephthalate) material, and filling the loose tube with fiber paste. The outer layer of the bundle tube is made of aramid yarn as a tensile element and filled with waterproof yarn. Then, it is assembled together with two multi strand bare copper wires (symmetrically placed) in a high-density polyethylene (HDPE) sheath to form a flat cable.

Product Features

• Small outer diameter, light weight, and small space occupation (usually multiple cables can solve a series of problems, which can be replaced by a composite cable here)

• It has superior bending performance and lateral pressure resistance, and is easy to construct

• Simultaneously providing multiple transmission technologies, with high adaptability, strong scalability, and wide product practicality for the same device. It is recommended to utilize a 1.5-2.5 square structure to synchronously solve the power supply and signal access problems of the device at once

• Print a "+" in the flat direction to distinguish between positive and negative poles

• Flat design with peeling opening, convenient for construction, suitable for pipelines

Structural and mechanical parameters

Mechanical properties

Order information

Note: X represents the number of cores, a represents the number of power cords, and b represents the specifications of the power cords (in square meters). Other lengths can be provided according to customer requirements.
