Non armored field fiber optic cable is a communication fiber optic cable designed for rapid wiring and repeated deployment in the wild and complex environments. The large area of aramid reinforced fibers provides extremely high mechanical strength for optical cables, and the compact all dielectric wiring structure makes the optical cable have a high strength to weight ratio, making it easy to quickly route. Fiber optic cables have the characteristics of light weight, high tensile strength, strong pressure resistance, good flexibility, easy bending, oil resistance, wear resistance, flame retardancy, etc. They are suitable for rapid wiring or repeated retraction of field communication systems, wiring between transformer sensing heads and hosts, radar and ship wiring, communication line repair and other harsh conditions.
Product Application
Wiring of field communication system
Transformer sensor head and host wiring
Radar and ship wiring
Product Features
High mechanical strength and strong tensile strength
Light weight, good flexibility
Oil resistant, wear-resistant, flame-retardant, corrosion-resistant
Low additional attenuation and good long-term stability
Fiber characteristics
| Fiber parameters | Description | |||
| Fiber type | PM1016-A | PM1016-B | PM1017-A | PM1017-B |
| Working wavelength (nm) | one thousand three hundred and ten | one thousand three hundred and ten | one thousand five hundred and fifty | one thousand five hundred and fifty |
| Mode field diameter (μ m) | 6.0±0.5@1310nm | 6.0±0.5@1310nm | 6.5±0.5@1550nm | 6.5±0.5@1550nm |
| Attenuation (dB/km) | ≤0.6 | ≤0.6 | ≤0.5 | ≤0.8 |
| Shooting length (mm) | ≤3.0 | ≤3.0 | ≤3.5 | ≤3.5 |
| Crosstalk @ 100m (dB) | ≤-30 | ≤-30 | ≤-30 | ≤-30 |
| Coating diameter (μ m) | 125.0±1.0 | 80.0±1.0 | 125.0±1.0 | 80.0±1.0 |
| Coating layer diameter (μ m) | 245.0±5.0 | 165.0±5.0 | 245.0±5.0 | 165.0±5.0 |

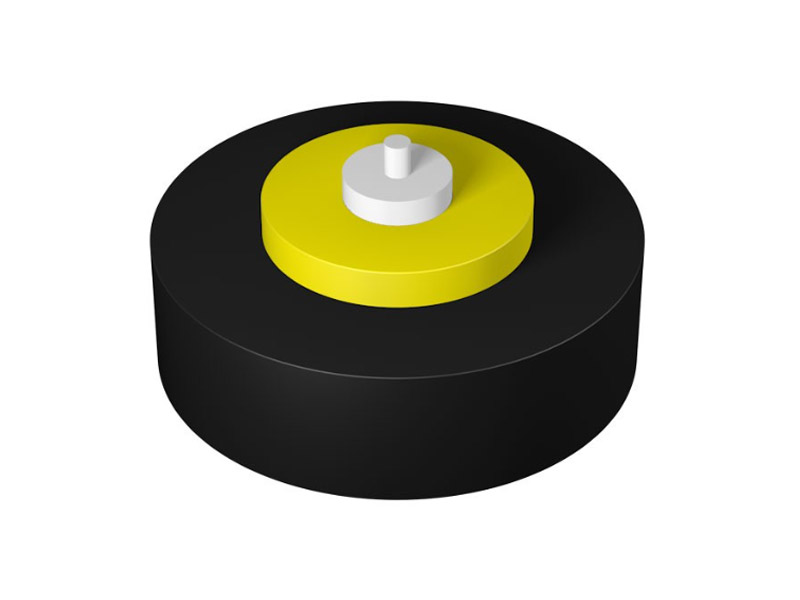

Fiber optic cable structure dimensions
| Project | Description | |||
| Fiber type | PM1016-A | PM1016-B | PM1017-A | PM1017-B |
| Fiber Color | true colors | |||
| Tensile element | aramid | |||
| Outer sheath diameter (mm) | 2.9±0.1 | |||
| Outer sheath wall thickness (mm) | 0.9±0.1 | |||
| Outer sheath material | PU | |||
| Outer sheath color | black | |||
Mechanical properties
| Project | Description | |
| Minimum bending | Static | 10D, D is the diameter of the optical cable |
| dynamic | 20D, D is the diameter of the optical cable | |
| pull | long-term | 80N |
| short-term | 150N | |
| pressure | long-term | 100N/10cm |
| short-term | 500N/10cm | |
Other
| Project | Description | |
| Operating temperature (℃) | -40~+70 | |
| Storage temperature (℃) | -40~+60 | |
| packaging | tableware | wooden tray |
| weight | Reference value 6.5 kg/km | |
Order information
Standard length: 2000m; other lengths can also be customized according to customer needs
