Category: Special optical cable

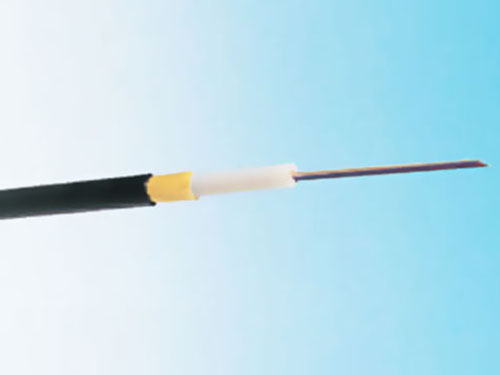

Technical features: Micro stainless steel tube center tube optical cable is a type of cable in which single-mode or multi-mode optical fibers are bundled into laser welded sealed stainless steel tubes. Every 12 optical fibers are bundled with colored yarn, and the stainless steel tube is filled with non-toxic and harmless waterproof compounds. Finally, a black or colored high-density polyethylene (HDPE) sheath is extruded to form the cable..
Application scope: Micro stainless steel tube center tube optical cable is a type of cable in which single-mode or multi-mode optical fibers are bundled into a laser welded sealed stainless steel tube. Every 12 optical fibers are bundled with colored yarn, and the stainless steel tube is filled with non-toxic and harmless waterproof compounds. Finally, a black or colored high-density polyethylene (HDPE) sheath is extruded to form the cable..
Laying method: Pipeline
Applicable temperature: -40 ℃~+60 ℃
| Technical Parameters | |||||||
| Number of optical fibers | Fiber optic cable diameter (mm) | Weight of optical cable (kg) | Bending radius (mm) | Maximum short-term tensile force (N) | |||
| single-mode fiber | multimode fiber | single-mode fiber | multimode fiber | static | dynamic | ||
| 2 | 2 | 3.9 | 14.5 | 14.5 | 156 | 156 | 200 |
| 4 | 4 | 3.9 | 14.6 | 14.6 | 156 | 156 | 200 |
| 6 | - | 3.9 | 14.7 | - | 156 | - | 200 |
| 8 | - | 3.9 | 14.8 | - | 156 | - | 200 |
| 12 | 6-8 | 3.9 | 15.5 | 15.3 | 156 | 156 | 200 |
| 48 | 24 | 5.0 | 30.0 | 28.9 | 200 | 200 | 200 |
| 60 | 48 | 5.0 | 31.6 | 30.8 | 200 | 200 | 200 |
