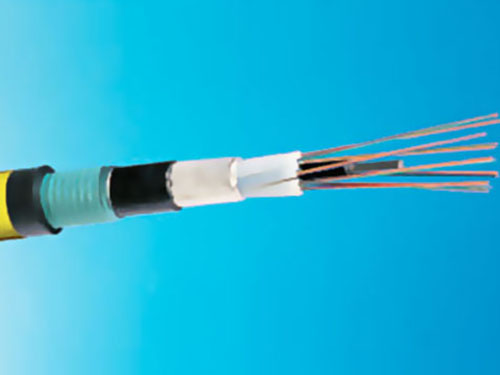

Category: Special optical cable
Technical features: Stable excess length control and cabling process enable optical cables to have excellent optics. Mechanical and environmental performance The cable core is fully filled with grease Double protective layer with anti ant nylon layer is more effective in preventing damage from termites, mice and other animals
Application scope: Stable surplus length control and cabling process enable optical cables to have excellent optics. Mechanical and environmental performance The cable core is fully filled with grease Double protective layer with anti ant nylon layer is more effective in preventing damage from termites, mice and other animals
Laying method: Direct burial
Applicable temperature: -40 ℃~+60 ℃
| Technical Parameters | ||||||||
| Number of optical cable cores | Outer diameter of optical cable (mm) | Weight of optical cable (kg/km) | minimum bend radius | Minimum allowable tensile force for optical fibers | Minimum allowable flattening force for optical fibers | |||
| Static (mm) | Dynamic (mm) | Short term (N) | Long term (N) | Short term (N/100m) | Long term (N/100m) | |||
| 2～36 | 15.9 | 233 | 199 | 398 | 3000 | 1000 | 3000 | 1000 |
| 38～72 | 17.3 | 274 | 216 | 433 | 3000 | 1000 | 3000 | 1000 |
| 74～96 | 18.9 | 328 | 236 | 473 | 3000 | 1000 | 3000 | 1000 |
| 98～120 | 20.6 | 380 | 258 | 515 | 3000 | 1000 | 3000 | 1000 |
| 122～144 | 22.4 | 442 | 280 | 560 | 3000 | 1000 | 3000 | 1000 |
| 146～216 | 22.7 | 455 | 284 | 568 | 3000 | 1000 | 3000 | 1000 |
