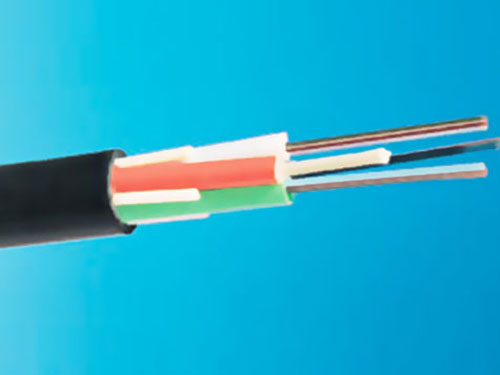

Category: Special optical cable
Technical features: Stable surplus length control and cabling process enable optical cables to have excellent optical, mechanical, and environmental performance.. The cable core is fully filled with grease. The non-metallic structure has excellent electromagnetic resistance
Application scope: Stable surplus length control and cabling process enable optical cables to have excellent optical, mechanical, and environmental performance.. The cable core is fully filled with grease. The non-metallic structure has excellent electromagnetic resistance
Laying method: Pipeline, overhead, cable trench..
Applicable temperature: -40 ℃~+60 ℃
| Technical Parameters | |||||||||
| Number of optical cable cores | Number of cores in optical cable | Outer diameter of optical cable (mm) | Weight of optical cable (kg/km) | minimum bend radius | Minimum allowable tensile force for optical fibers | Minimum allowable flattening force for optical fibers | |||
| Static (mm) | Dynamic (mm) | Short term (N) | Long term (N) | Short term (N/100m) | Long term (N/100m) | ||||
| 24~144 | 6 | 15.7~18.1 | 182~241 | 157~181 | 314~362 | 1500~3000 | 600 | 1000 | 300 |
| 72~288 | 12 | 20.2 | 250~295 | 202 | 320 | 3000 | 600 | 1000 | 300 |
Aoxing Company can design and produce this type of optical cable according to the user's requirements for the number of cores and installation environment.
