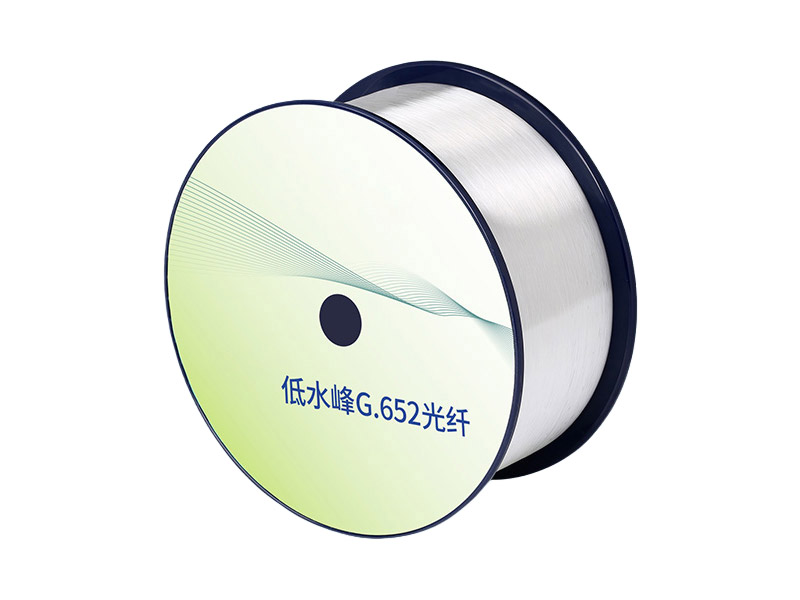

Low water peak non dispersive shifted single-mode fiber is suitable for transmission systems in the entire wavelength range of 1260-1625nm. It suppresses the water peak loss caused by hydroxide ion (OH -) absorption in ordinary single-mode fibers around 1383nm, expands the working window to the E-band (1360-1460nm), and thus increases the spectral bandwidth by about 100nm. The optical fiber has comprehensively optimized the attenuation and dispersion characteristics of the entire 1260-1625nm band, and improved the anti bending performance of the L-band (1565-1625nm), fully meeting the demand for multi-channel transmission of high-speed services on a single optical fiber.
Product Application
With wide spectral bandwidth and superior optical characteristics, optical fiber is the best choice to support different transmission technologies such as Ethernet, Internet Protocol (IP), Asynchronous Transfer Mode (ATM), Synchronous Optical Network (SONET) and Wavelength Division Multiplexing (WDM). Quanbei ® Fiber optic provides greater bandwidth resources for backbone networks, metropolitan area networks, and access networks, meeting the bandwidth requirements of various services such as voice, digital, and image transmission.
Fiber optic cables are suitable for various types of optical cable structures, including fiber ribbon cables, loose layer twisted cables, skeleton cables, central bundle tube cables, and tight fitting cables.
Product Standard
Low peak single-mode fiber meets or exceeds ITU-T G.652. D and IEC standards; 60793-2-50 B1.3 Optical Fiber Technical Specification.
Stricter standards have been established for various indicators of fiber optic products.
Product Features
Realize full band transmission of 1260-1625nm, increase spectral bandwidth by 50%, and improve system transmission capacity
Superior optical properties meet the transmission requirements of high-speed DWDM and CWDM systems
Compatible with existing 1310nm transmission equipment
Good coating protection and superior peeling performance
Accurate geometric parameters ensure low welding loss and high welding efficiency
Specification Parameters
| Features | Condition | Data | Unit | |
| Optical properties | ||||
| attenuation | 1310nm | ≤0.34 | [dB/km] | |
| 1383nm (after hydrogen aging) | ≤0.34 | [dB/km] | ||
| 1550nm | ≤0.20 | [dB/km] | ||
| 1625nm | ≤0.24 | [dB/km] | ||
| Relative attenuation variation with respect to wavelength | 1285-1330nm, Compared to 1310nm | ≤0.03 | [dB/km] | |
| 1525-1575nm, Compared to 1550nm | ≤0.02 | [dB/km] | ||
| Dispersion within the wavelength range | 1285-1340nm | -3.5 to 3.5 | [ps/(nm·km)] | |
| 1550nm | ≤18 | [ps/(nm·km)] | ||
| 1625nm | ≤22 | [ps/(nm·km)] | ||
| Zero-dispersion wavelength(λ0) | -- | 1300~1324 | [nm] | |
| Zero-dispersion slope(S0) | -- | ≤0.092 | [ps/(nm2·km)] | |
| Typical value of zero dispersion slope | -- | 0.086 | [ps/(nm2·km] | |
| Polarization Mode Dispersion Coefficient (PMD) | Maximum value of a single fiber | -- | ≤0.1 | [ps/√km] |
| Fiber link value（M=20，Q=0.01%) | -- | ≤0.06 | [ps/√km] | |
| typical value | -- | 0.04 | [ps/√km] | |
| Cut off wavelength of optical cable（ λcc) | -- | ≤1260 | [nm] | |
| mode field diameter（MFD) | 1310nm | 8.7~9.5 | [μm] | |
| 1550nm | 9.8~10.8 | [μm] | ||
| Effective group refractive index（Neff) | 1310nm | 1.466 | -- | |
| 1550nm | 1.467 | -- | ||
| Point discontinuity | 1310nm | ≤0.05 | [dB] | |
| 1550nm | ≤0.05 | [dB] | ||
| Geometric characteristics | ||||
| cladding diameter | -- | 125.0±0.7 | [μm] | |
| cladding non-circularity | -- | ≤1.0 | [%] | |
| Coating diameter | -- | 235~250 | [μm] | |
| Concentricity error of coating/cladding | -- | ≤12.0 | [μm] | |
| Coating non roundness | -- | ≤6.0 | [%] | |
| Core/cladding concentricity error | -- | ≤0.6 | [μm] | |
| Curvature (radius) | -- | ≥4 | [m] | |
| Delivery length | -- | The longest is 50.4 | [km/disk] | |
| Environmental characteristics 1310nm, 1550nm, and 1625nm | ||||
| Temperature additional attenuation | -60 ℃ to 85 ℃ | ≤0.05 | [dB/km] | |
| Temperature humidity cycle with additional attenuation | -10 ℃ to 85 ℃, 98% relative humidity | ≤0.05 | [dB/km] | |
| Immersion additional attenuation | 23 ℃, 30 days | ≤0.05 | [dB/km] | |
| Damp heat additional attenuation | 85 ℃, 85% relative humidity, 30 days | ≤0.05 | [dB/km] | |
| Dry heat aging | 85 ℃, 30 days | ≤0.05 | [dB/km] | |
| Mechanical Characteristics | ||||
| Filter tension | -- | ≥9.0 | [N] | |
| -- | ≥1.0 | [%] | ||
| -- | ≥100 | [kpsi] | ||
| Macro bending additional loss | 100 circles, radius 30mm | 1625nm | ≤0.05 | [dB] |
| 100 circles, radius 25mm | 1310nm and 1550nm | ≤0.05 | [dB] | |
| 1 circle, radius 16mm | 1550nm | ≤0.05 | [dB] | |
| Coating peeling force | Typical average | one point five | [N] | |
| peak | 1.3~8.9 | [N] | ||
| Dynamic fatigue parameters（nd） | -- | ≥20 | -- | |
